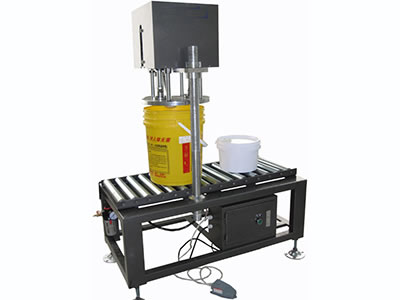

Pail Lid Closing Press

Pail Lid Closing Press

Pail lid closing press is mainly designed for the sealing of various plastic pails. The pail lid closing press is equipped with two groups of cylinders which can press pails' lids twice successively to seal them completely. The pail lid closing press can be used with weighing filler to complete the filling and sealing of liquids.

Features
  • Closing method: press lid twice
  • Controlling method: Electronic-pneumatic control
  • Conveying method: roller conveyor
  • The time of lid pressing is adjustable
  • The force of lid pressing is adjustable.
  • Braking with pedals.
  • Surplus air can be discharged before sealing, which can prevent pails’ lids from bulging caused by unbalanced air pressure.
  • With good sealing performance.
Main parameters
  • Compression plate diameter
    80-340mm
  • Production capacity
    20-40 pails/min
  • Applicable pail specification
    4L, 5L, 10L, 12L, 18L, 20L standard pails
  • Material
    carbon steel frame with powder-coated finish, conveyed by non-powered roller conveyor
  • Dimension
    1000x520x1300mm
  • Weight
    100kg
