Centrifugal Pump

Centrifugal Pump

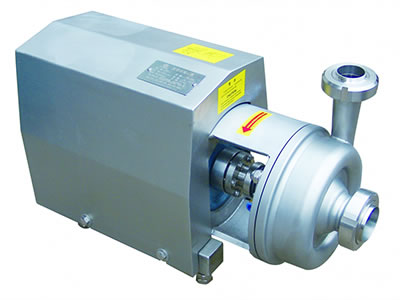

This is a self-priming centrifugal pump used for conveying liquid with a viscosity less than 650mm2/s. The centrifugal pump is designed for CIP(Clean-In-Place) system and SIP(Sterilizing-In-Place) system and has been widely used in varieties of food, beverage and pharmaceutical processing factories. We also provide rotary lobe pumps for conveying liquid with viscosity more than 650mm2/s.

The following food-grade centrifugal pumps can be provided:
Sanitary centrifugal pumps for beverage processing, dairy processing, biotech applications, etc.
Stainless steel centrifugal pump.
Custom centrifugal pump.

Specification (model selection)
Model Flow Rate(L/H) Head (m) Caliber(mm) Rotation Speed(RPM) Power(KW)
SCP-1-10 1000 10 32/25 2900 0.55
SCP-3-16 3000 16 40/32 2900 0.75
SCP-5-24 5000 24 40 2900 1.5
SCP-5-32 5000 32 40 2900 2.2
SCP-10-24 10000 24 50/40 2900 2.2
SCP-10-36 10000 36 50/40 2900 3
SCP-20-24 20000 24 50 2900 4
SCP-20-36 20000 36 50 2900 5.5
SCP-30-24 30000 24 65/50 2900 5.5
SCP-30-36 30000 36 65/50 2900 7.5
SCP-40-36 40000 36 80/65 2900 7.5
SCP-50-40 50000 40 80/65 2900 11
Features
  • Material: the pump casing, pump cover and impeller are all made of SUS304/SUS316L material.
  • Surface treatment: parts in contact with the medium material have been precisely polished to ensure no residue on theirs surface.
  • Mechanical seal is used to ensure safety.
  • The pump is easy to maintenance, which and reduce your costs of repairing.
  • Special motors such as explosion-proof motors can be provided according to your requirements.
