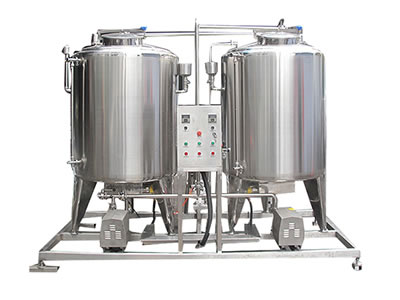

Stainless Steel Mixing Tank

Stainless Steel Mixing Tank

Stainless steel mixing tank is designed for heating, mixing, dispensing, cooling and insulating food materials. Stainless steel mixing tank has been widely used in food, dairy, beverage, alcohol, condiments, grease, chemical industry and other industries.

This stainless steel mixing tank adopts mechanical mixing mode to achieve large capacity materials mixing. Besides, steam heating or electric heating device can be equipped for materials heating according to your actual production needs.

Parameters
Volume 300L 400L 500L 600L 800L 1000L 1500L 2000L 3000L
Tank diameter(mm) Ф800 Ф800 Ф900 Ф1000 Ф1000 Ф1000 Ф1200 Ф1300 Ф1600
Tank height(mm) 600 800 800 800 1000 1220 1220 1500 1500
Motor power (KW) 0.55 0.55 0.55 0.55 0.55 0.75 1.5 2.2 3
Mixing speed (rpm) 36RPM
Working pressure ≤0.09MPA
Working temperature ≤100℃

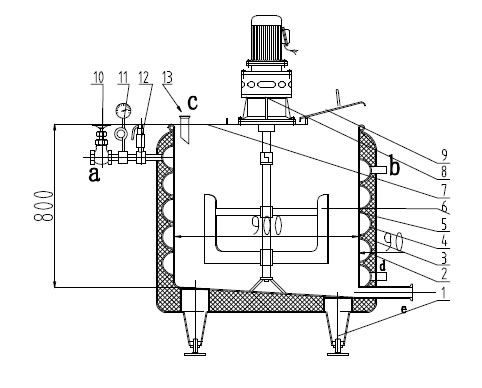

Structure of stainless steel mixing tank
Stainless Steel Mixing Tank
No. Item Qty. Material
1 Tank leg 4 USU304
2 Outer shell 1 USU304
3 Insulating layer Polyurethane foam
4 Steam pipe 1
5 Inner container 1 USU304
6 Stirrer 1 USU304
7 Shelf 1 USU304
8 Gear reducer 1 0.75KW 36r/min
9 Cover 1 USU304
10 Electrothetic valve 1
11 Pressure meter 1
12 Relief valve 1
13 Inlet 1
Features
Stainless steel mixing tank has components of inner container, jacket, insulation layer,outer shell, gear reducer, agitator, thermometer, etc.
  • Inner container: made of stainless steel with smooth surface.
  • Jacket: made of steel plates and can increases heat transfer area through spiral design. The jacket has high thermal efficiency and can heat or cool materials uniformly.
  • Insulation layer: made of polyurethane or glass wool to ensure thermal insulation effect.
  • Thermometer: displays temperature ranging from 0 to 100 ℃
