Auxiliary Products
Sanitary filter
Applications
Sanitary filter is mainly used for filtering liquids by eliminating solid particles, which can protect pumps or other equipment from damage. The sanitary filter has been widely used in brewing, beverage, dairy and pharmaceutical industries.
- Filter material: 304 stainless steel
- Sealing material: EPDM or NBR
- Working pressure: 0-10bar
- Working temperature: -20-135℃ (when sealed with EPDM)
- Standard filter mesh: 100 mesh
| Model | A | D(SMS) | H(mm) | |
| 76 | Ф76 | 32 | 300 | |
| 89 | Ф89 | 51 | 400 | |
| 102 | Ф102 | 63 | 500 |
Stainless Steel Piping System

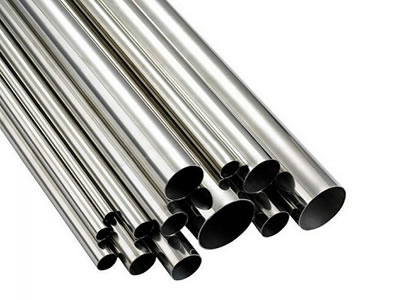

Stainless Steel Pipes
We can provide you with high performance stainless steel pipes for your connection requirements of food processing equipment. You can also contact us for pipes customization service.
Parameters| DIN11850 | 3A | SMS | ||||||
| Size | D | T | Size | D | T | Size | D | T |
| DIN10 | 12 | 1.5 | 1/2" | 12.7 | 1.65 | 19 | 19.05 | 1.25/1.5 |
| DIN15 | 18 | 1.5 | 3/4" | 19.05 | 1.65 | 25 | 25.4 | 1.25/1.5 |
| DIN20 | 22 | 1.5 | 1/2" | 25.4 | 1.65 | 32 | 31.8 | 1.25/1.5 |
| DIN25 | 28 | 1.5 | 1 1/2" | 38.1 | 1.65 | 38 | 38.1 | 1.25/1.5 |
| DIN32 | 34 | 1.5 | 2" | 50.8 | 1.65 | 51 | 50.8 | 1.25/1.5 |
| DIN40 | 40 | 1.5 | 2 1/2" | 63.5 | 1.65 | 63 | 63.5 | 1.6/2.0 |
| DIN50 | 52 | 1.5 | 3" | 76.2 | 1.65 | 76 | 76.2 | 1.6/2.0 |
| DIN60 | 70 | 2.0 | 4" | 101.6 | 2.1 | 89 | 88.9 | 2.0 |
| DIN80 | 85 | 2.0 | 6" | 152.4 | 2.8 | 102 | 101.6 | 2.0 |
| DIN100 | 104 | 2.0 | 8" | 203.2 | 2.8 | |||
| DIN125 | 129 | 2.0 | ||||||
| DIN150 | 154 | 2.0 | ||||||
| DIN200 | 204 | 2.0 | ||||||
Stainless Steel Pipe fittings
Other accessories

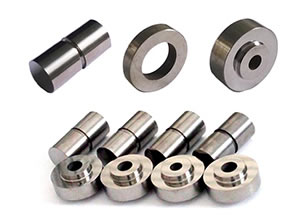

We can also provide other accessories such as homogenizing valve, seats, piston, plunger gaskets and pressure gauge for you.
Other Products
