Steam Jacketed Kettle

  • Steam Jacketed Kettle
  • Steam Jacketed Kettle

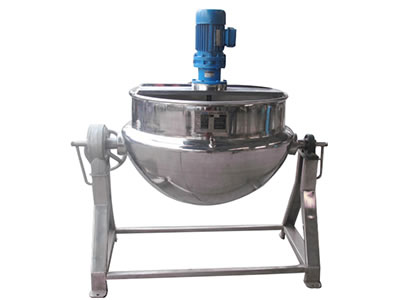

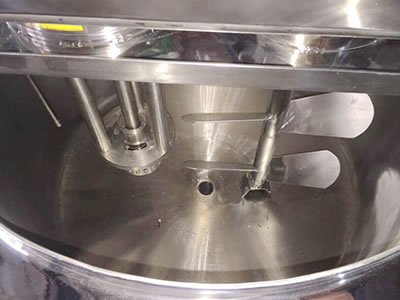

Steam jacketed kettle is mainly designed for melting, heating and dispensing materials. The kettle’s body features double-layer structure made of food-grade stainless steel. Steam or heat oil can be passed into the interlayer for uniform heating, which also brings the kettle high heating efficiency. We can provide you with different kettles with volume ranges from 50 L to 1000L. In addition, Longde can also design and manufacture custom steam jacketed kettles according to your actual production requirements.

Available models of steam jacketed kettle
Model JCG-50 JCG-100 JCG-200 JCG-300 JCG-400 JCG-500 JCG-600 JCG-800 JCG-1000
Steam jacketed kettle Caliber diameter (mm) Ф600 Ф700 Ф800 Ф900 Ф1000 Ф1100 Ф1200 Ф1300 Ф1400
Kettle depth (mm) 450 500 550 600 650 700 750 850 950
Full volume (L) 50 100 200 300 400 500 600 800 1000
Connection size Steam pipe 3/4'' 1" 2"
Condensate pipe 3/4'' 1"
Mixing motor power (KW) 0.75 1.1 1.5 2.2
Boiling time (min) of 80% filling 5 8 11 14 18 22 25 34 40
Heat transfer area (m2) 0.45 0.58 1.12 1.42 1.75 2 2.3 3.2 3.9
Steam consumption (kg/cycle ) 3.25 6.5 13 19.5 26 32.5 39 52 65
Design temperature (℃) 147 (The design can be adjusted according to your production situation)
Maximum working temperature(℃) 135 (The design can be adjusted according to your production situation)
Design pressure(Mpa) 0.35 (The design can be adjusted according to your production situation)
Maximum working pressure(Mpa) 0.3 (The design can be adjusted according to your production situation)
Dimension Length(mm) 650 750 850 950 1050 1150 1250 1450 1550
Width(mm) 650 750 850 950 1050 1150 1250 1450 1550
Height(mm) 1350 1400 1450 1500 1550 1700 1800 1900 2000
