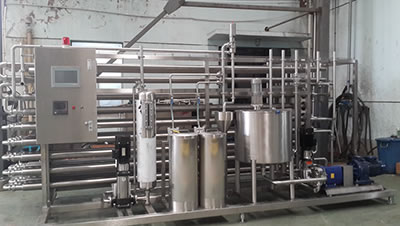

Tubular Pasteurizer
Tubular pasteurizer can be used for sterilization of medium and high viscosity materials including cream, liquids which contain fibers and larger solid particles, and acidic or corrosive products, etc. Tubular pasteurizers we have produced before are showed below for your selection. If you have any other demands, welcome to contact us for customization service.
Models available| Model | Unit | TG-PUT-15 | TG-PUT-20 | TG-PUT-25 | TG-PUT-30 | TG-PUT-55 | TG-PUT-105 |
| Capacity | t/h | 2 | 3 | 4 | 5 | 10 | 20 |
| Heat transfer area | M2 | 15 | 20 | 25 | 30 | 55 | 105 |
| Material inlet temperature | ℃ | 5 | |||||
| Material outlet temperature | ℃ | 5 | |||||
| Pasteurization temperature | ℃ | 85-95 | |||||
| Holding time | s | 15 | |||||
| Ice water temperature | ℃ | 1 | |||||
| Ice water consumption | multiple | 3 | |||||
| Cooling water consumption | multiple | 2 | |||||
| Power consumption | KW | 10 | 10 | 12 | 14 | 16 | 20 |
| Connection size | mm | 3500*1900 *1880 | 3500*1900 *1880 | 4500*1950 *1880 | 4500*2000 *1880 | 6500*2000 *1880 | 6500*2000 *1880 |
